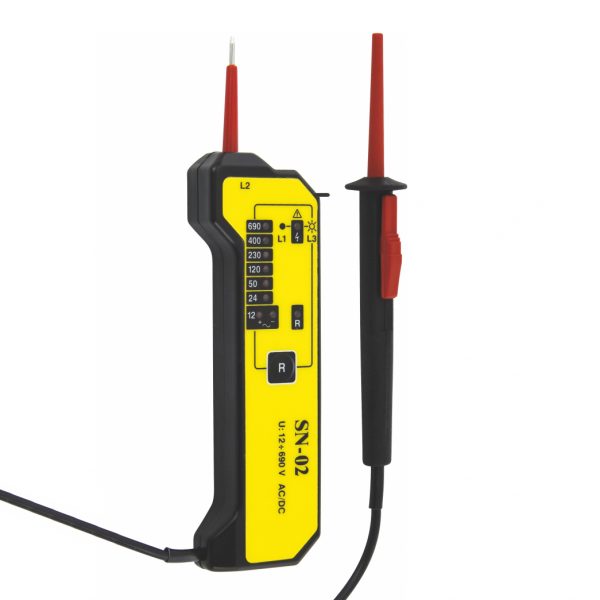

LV tester up to 690 V
SN-02 is a voltage, continuity and phase sequence tester that automatically distinguishes AC / DC voltage and DC voltage polarity.
The tester is used to measure:
- AC and DC voltage in the range of 12 ÷ 690 V
- Continuities less than 400 Ω
- Phase sequence of 110 ÷ 690 V three-phase system
- Phase voltage indication
Technical parameters:
Display: 10 LEDs
AC/DC voltage measurement: 12 ÷ 690 V
Continuity indication: <approx. 400 kΩ
Phase conductor test: 50 ÷ 690 V
Phase sequence test: 110 ÷ 690 V
Power: 1x9V 6F22/6L61
Weight: approx. 150 g
Dimensions: 190 x 45 x 22 mm
